Black iav Screen Wifi Ntxuam Coil Thermostat TGT70-AC
video
Black iav Screen Wifi Ntxuam Coil Thermostat TGT70-AC

Black iav Screen Wifi Ntxuam Coil Thermostat TGT70-AC

Daim Ntawv Thov: Central Cua Conditioning Control
Nta: Kov Screen; WiFi Tswj
Qauv: 2 yeeb nkab thiab 4 yeeb nkab rau kev xaiv

Xa kev nug
BEOK TGT70WIFI-AC Chav Thermostat
  • Kev xa khoom sai
  • Quality Assurance
  • 24/7 Kev Pabcuam Cov Neeg Siv Khoom



Khoom Description



TGT70 seriesWifi Ntxuam Coil Thermostatyog siv los tswj cov chav tsev kub los ntawm kev tswj cov kiv cua ceev. Lub ntsuas cua sov muaj kiv cua tswj kev ua haujlwm uas thaum chav tsev kub ncav cuag qhov kub thiab txias, kiv cua kauj yuav tua, txwv tsis pub, nws yuav qhib. Qhov FCU thermostat no haum rau nruab nrab cua txias system hauv tsev so, chav tsev thiab lwm lub tsev kom ua tiav cov cua txias thiab cua sov.



70-AC-01-1000x



Video



Technical Parameters
Nta Tsis muaj
Khoom npe
Wifi Ntxuam Coil Thermostat
Qhov hluav taws xob AC200 ~ 240V 50 ~ 60Hz (24V tuaj yeem hloov kho)
Tam sim no
3A~5A
Kev siv fais fab
<0.5W
Khoom siv sab nraud
PC + ABS (nplaim retardant)
Sensing Element
NTC sab hauv sensor
Teem Temp. Ntau yam
10-40 degree
Dimension
86x86x13.3mm
Ambient Temp.
0-45 degree , 5-95RH(Non-condensing)
Cia Temp.
-5 ~ 55 degree
Timing yuam kev
<1％



70-AC-02-1000x



Hais txog Thermostat



TGT70 series Wifi Ntxuam Coil Thermostat muaj Wifi muaj nuj nqi uas txhais tau hais tias lub ntsuas sov tuaj yeem tswj tau hauv xov tooj App, uas yog Beok tus kheej daim ntawv thov npe hu ua Beok AC, nws tuaj yeem rub tawm ntawm Google Play thiab App Store rau Android thiab IOS system ntse xov tooj. Tab sis nws tsuas yog txhawb nqa 2.4Ghz net rau tam sim no.



Hais txog kev faib tawm ntawm qhov ntsuas kub no, peb muaj 2 thiab 4 yeeb nkab rau kev xaiv raws li qhov nruab nrab cua tshuab. Yog tias tsuas muaj ib lub valve los tswj cov kav dej rau cov dej kub thiab dej txias, ces 2 cov yeeb nkab yuav haum. Yog tias muaj ob lub valve uas tswj cov cua sov thiab dej txias sib cais, ces 4 cov yeeb nkab yuav haum.

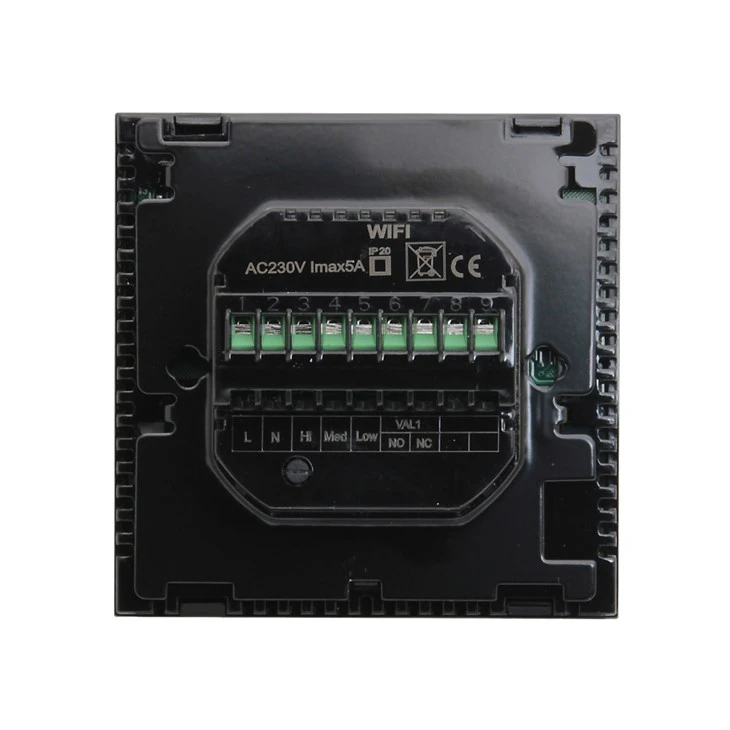

TGT70-Wifi-Fan-Coil-Thermostat-Wiring

Tsis tas li ntawd, TGT70 muaj me meEU txheem zais nruab lub thawvvim tias qhov loj me ntawm lub davhlau ya nyob twg yog me me, thiab qhov deb ntawm qhov nruab nrab yog 60mm. Lub thav duab sab nrauv ntawm TGT70 yog ua los ntawm cov khoom siv hluav taws xob zoo, thiab cov phaj mounting rov qab yog ua los ntawm cov hlau los ua kom muaj kev pab cuam lub neej ntawm cov khoom. Yog li peb TGT70 warranty tuaj yeem ncav cuag 24 lub hlis kom cov neeg siv tsis tas yuav hloov nws ntau zaus.



Tsuas yog rau cov yam ntxwv saum toj no, TGT70 muaj timer on-off muaj nuj nqi thiab muaj 4 lub sijhawm rau ib hnub. Cov neeg siv tuaj yeem teem sijhawm rau lub ntsuas sov thiab tawm los ntawm kev ua raws li lawv tus cwj pwm yog li tuaj yeem pab txuag lub zog. Tsis tas li ntawd cov ntsuas kub muaj 3 kiv cua ceev los tswj xws li siab, nruab nrab thiab qis ceev uas cov neeg siv tuaj yeem kho qhov ceev ntawm huab cua hauv chav cua sov lossis cua txias.



Hauv cov ntsiab lus, TGT70 Wifi Ntxuam Coil Thermostat muaj tag nrho cov duab dub tsim ua rau lub vijtsam nyeem tau yooj yim dua thiab zoo nkauj uas tuaj yeem tsim nyog rau kev tsim qauv hauv tsev sib txawv.



Qauv Spec
Hlau txuas
AC-2pipe
AC-4pipe
AC-2pipe
AC-4pipe
Qauv nab npawb TGT70-AC2 TGT70-AC4 TGT70WIFI-AC2 TGT70WIFI-AC4
Ntxuam Ceev Tswj siab/mid/low siab/mid/low siab/mid/low siab/mid/low
Fais fab mov 220-240Vac 220-240Vac 220-240Vac 220-240Vac
Max Load 5amp ua 5amp ua 5amp ua 5amp ua
WiFi Function TSIS MUAJ TSIS MUAJ YOG YOG
CE / ROHS ntawv pov thawj YOG YOG YOG YOG



Phau ntawv
